Walksnail Avatar HD Goggles
- Regular price
-
$1,007.97 - Regular price
-
$0.00 - Sale price
-
$1,007.97
Couldn't load pickup availability
Shipping information
US (3 to 5 business days)
International (6 to 12 business days)
Returns information
We have a 30-day return policy, which means you have 30 days after receiving your item to request a return.
Product Details

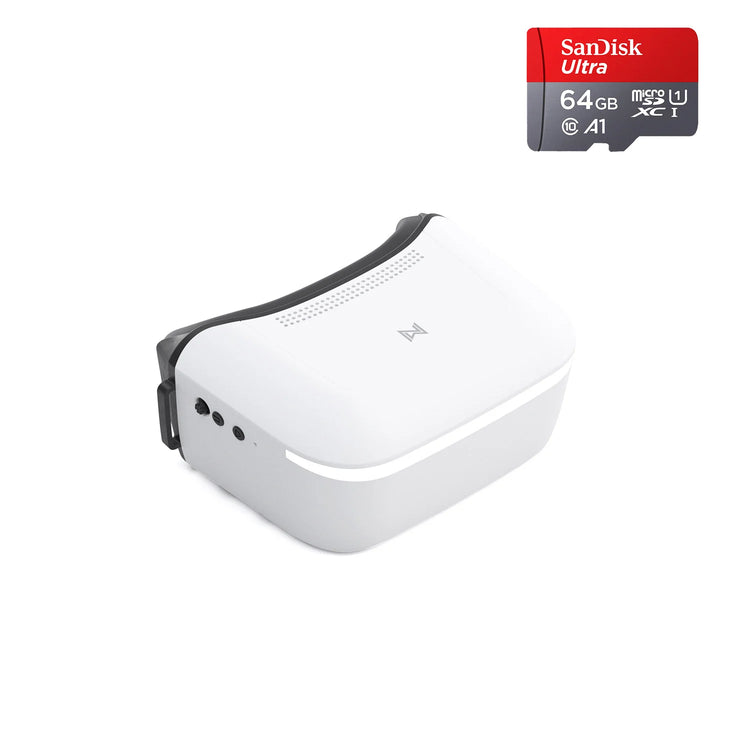

Walksnail Avatar HD Goggles L 1920x1080 4.5 Inch 4km Distance Head Tracking for RC Cars FPV Drone Fixed-wing
SPECIFICATIONS
Battery Included: No
Brand Name: NONE
Certification: CE,FCC
Compatible Drone Brand: Walkera
Fps: 60fps
High-concerned chemical: None
Item Weight: 350g
Origin: Mainland China
Package: Yes
Product Dimensions: 148*72*121mm
Resolution: 1080p
Supported Storage Card: Micro SD Card
Transmitter Power (EIRP): FCC:<30dBm; CE:<14dBm; SRRC:<20dBm; MIC:<25dBm
REAL STOCK. Ship within 24 Hours After Payment.
No Battery Inside. External Power Supply.
Specification
Model: Avatar HD Goggles L
Communication Frequency 5.725-5.850GHz
Transmitter Power(EIRP) FCC:<30dBm; CE:<14dBm; SRRC:<20dBm; MIC:<25dBm
I/O Interface 4Pin 3.5mm Plug, DC5.5*2.1mm, Micro SD Card Slot,
Gyro Nine-axis gyroscope
Transmission Resolution 1080p60fps, 720p60fps
Code Rate Max 50 Mbps
Min. Latency Average 32ms
Average Gain 4.9dBi
Polarization LHCP
Transmission Distance ＞4km
Channel 8
Screen Resolution 1920*1080/60Hz
Screen Material LCD
Screen Size
4.5 Inch
Power Input 6V-25.2V(2S-6S)
SD card Support 256G
Net weight 350±10g
System Avatar HD System
Packing List:
Straight DC5.5-XT60 Power Cord x1
Storage Bag x1
Lens Cleaning Cloth x1
Preface About Goggles L
To provide users with a cost-effective entry into HD systems while ensuring an excellent experience, we have developed the first single-screen HD goggles equipped with head tracking functionality. This innovative device is designed to deliver an unparalleled FPV experience, allowing pilots to enjoy the combined benefits of head tracking and HD visuals.
Bullet Points:
The goggles are equipped with an in-house developed full-stack image transmission head tracking system. The head tracking sensor, employing a nine-axis gyro module, is integrated into the goggles to capture the pilot's head movements. Paired with a gimbal, it sends signals via the image transmission system to control the camera's pan and tilt, providing pilots with a cockpit-like sensation.
The Avatar HD system adopts industry-leading H.265 encoding technology, delivering 1080P/60FPS FPV video quality for an immersive and responsive experience.
It also supports PPM signal output to Radio Controllers via the Goggles L's 3.5mm headphone TX connector, which in turn outputs to the drone.
Employing cutting-edge optical design, the goggles offer distortion-free and high-resolution imaging at 1920X1080, coupled with a 4.5-inch HD display for clarity and eye protection.
With a built-in Micro SD card slot, users can easily record their flights with just one touch, capturing every exhilarating moment.
Featuring a high-performance directional antenna with a gain of up to 4.9 dBi, the goggles ensure stable signal transmission, enabling longer flight distances.
Compatible with 2-6S voltage input, the goggles are compatible with all drone batteries, providing users with greater flexibility.
The detachable lens design supports various vision needs, allowing for the installation of nearsighted, farsighted, or blue light-blocking lenses to meet individual preferences.
Compatibility with all current Walksnail VTX models ensures stability and the ability to fly when you want to, in both indoor and outdoor environments.
The front cover has an added light-up feature with a cool light bar design to add a technological touch to your gear.
Utilizing premium polyurethane foam, the goggles' face mask ensures softness and comfort, while reducing light leakage for an enhanced wearing experience.
The Goggles L is suitable for RC cars, FPV drones, and fixed-wing. With the most competitive cost, Goggles L allows you to experience true digital HD FPV visuals, bringing clarity and immersion to your FPV adventures.
