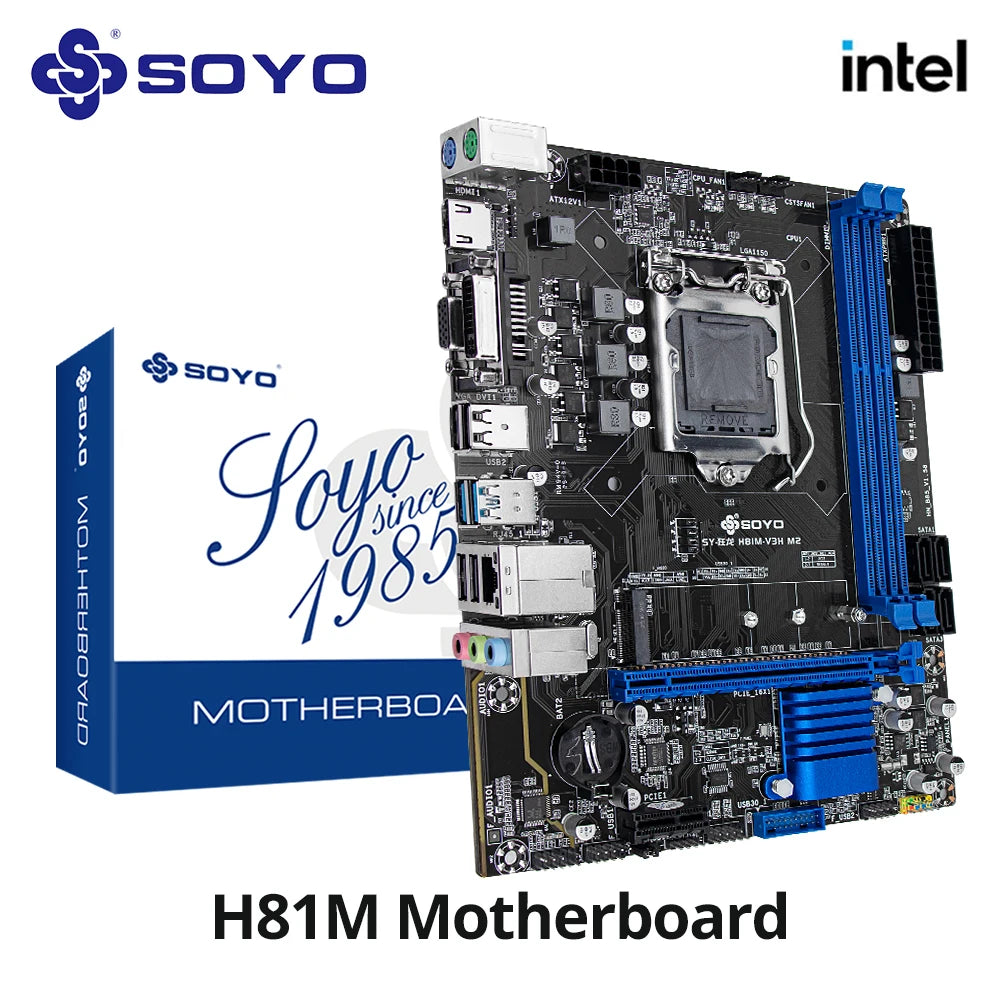

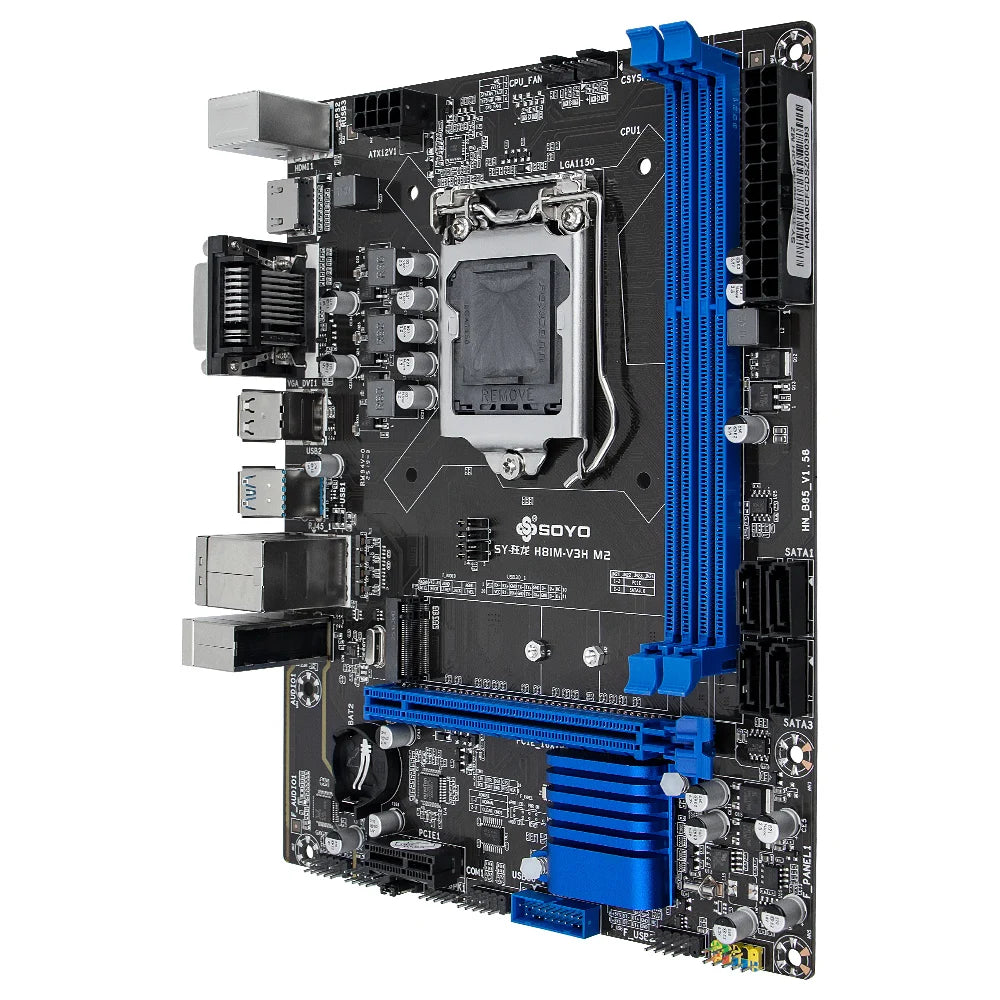

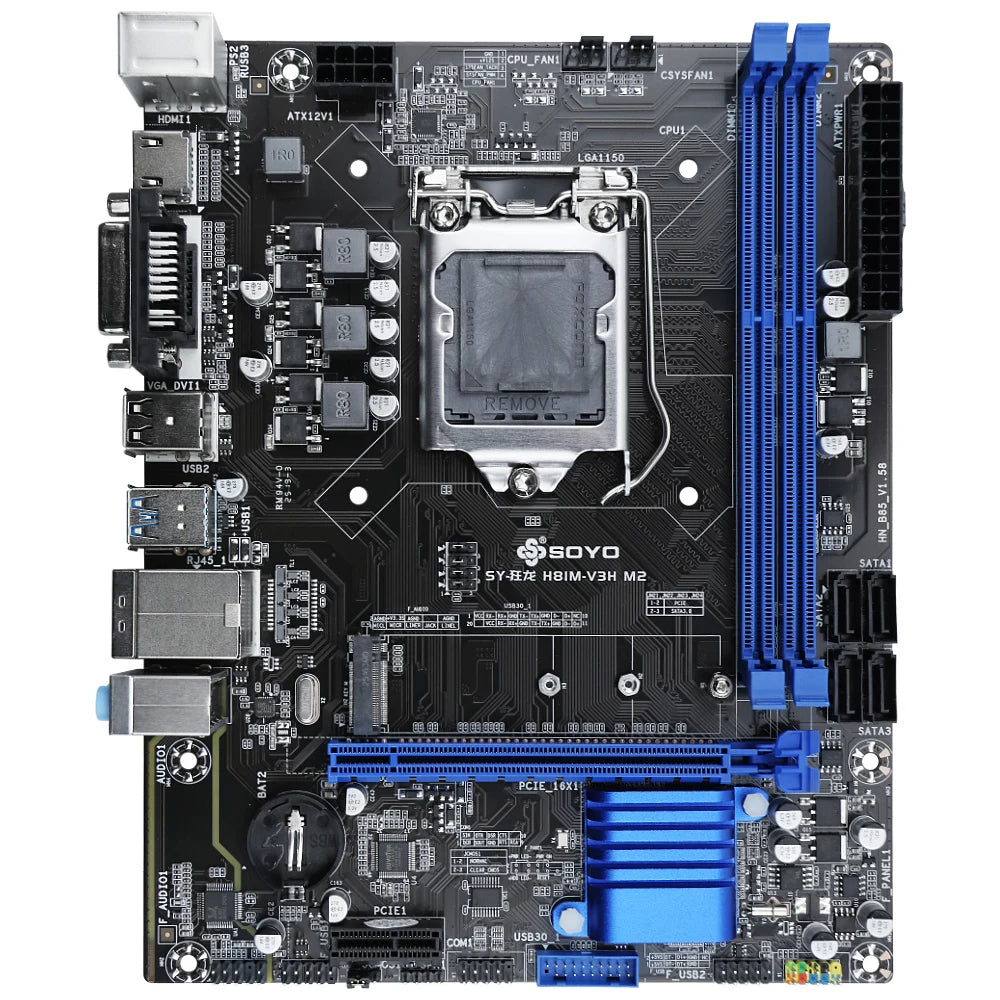

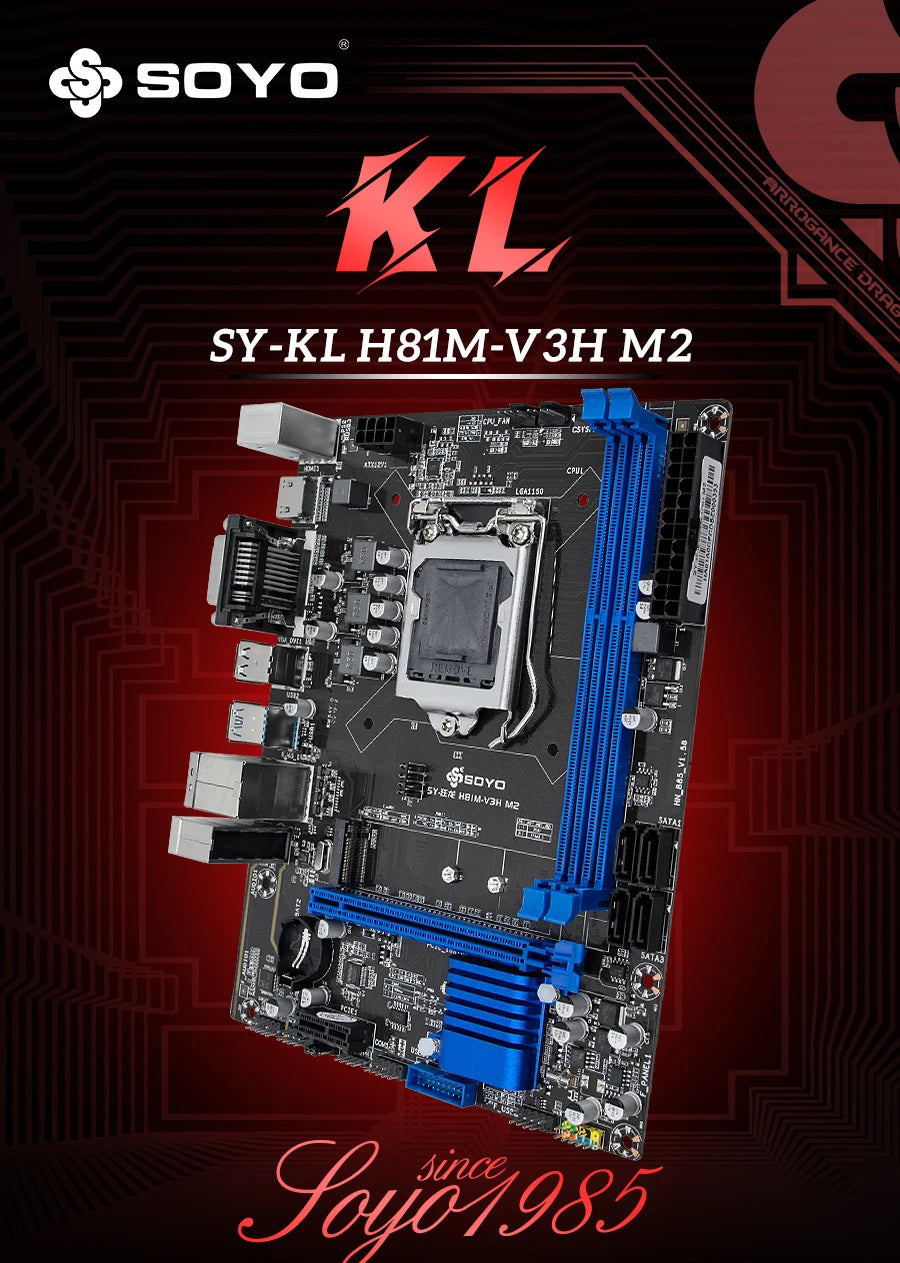

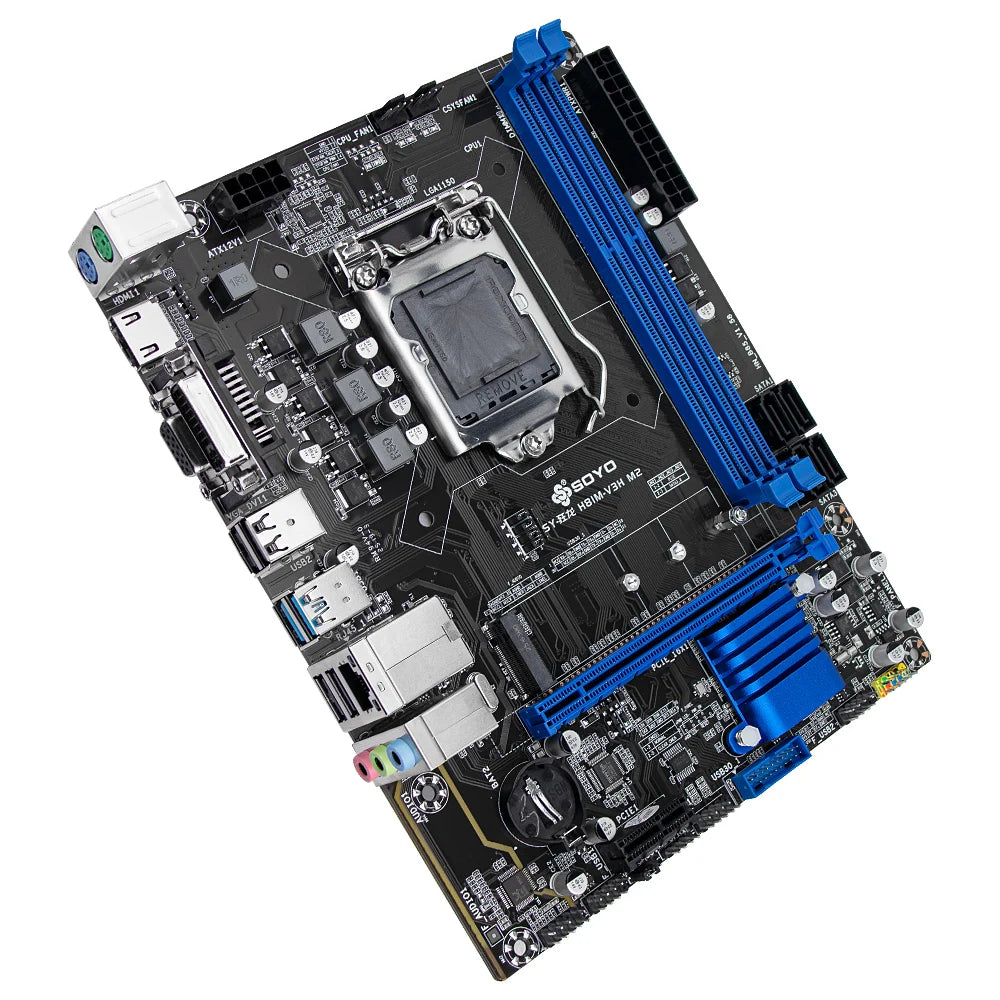

SOYO H81M Gaming Motherboard Dual Channel DDR3 M.2 NVME PCIEx16 HDMI VGA Interface LGA 1150 Supports Intel Core 4th Gen CPU

Regular price: $83.28
Regular price: ~~$0.00~~
Sale price: $83.28

Default Title Default Title

Product variants

Shipping information

US (3 to 5 business days)

International (6 to 12 business days)

Returns information

We have a 30-day return policy, which means you have 30 days after receiving your item to request a return.

Free shipping on all orders!

Product Details

SPECIFICATIONS

Application: Desktop

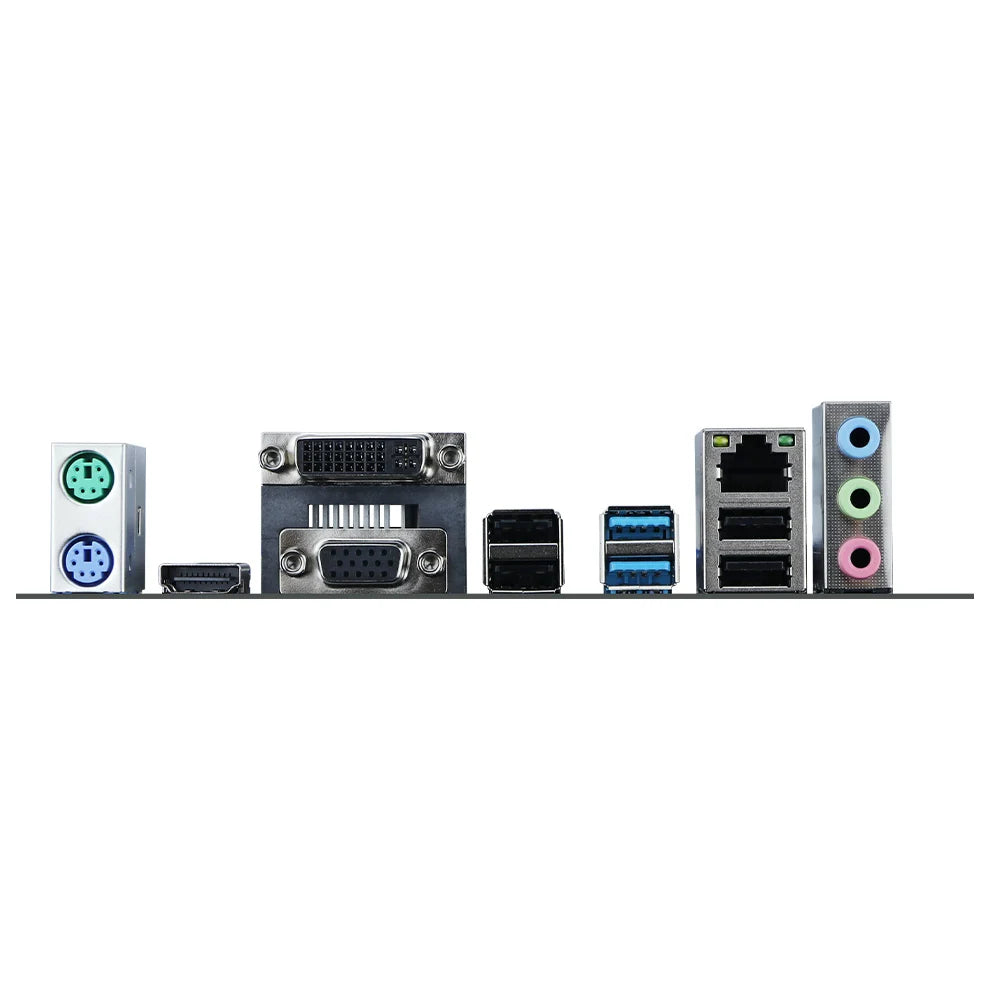

Back I/O Ports: 1x RJ45,VGA (D-Sub),6 x USB 2.0,3 x Audio Jacks

Battery Included: No

Brand Name: SOYO

Certification: RoHS,FCC,CE

Chipset: Intel H81

Chipset Manufacturer: Intel

Choice: yes

Form Factor: Micro-ATX

High-concerned chemical: None

Max LAN Speed: 1000Mbps

Maximum Ram Capacity: 16 GB

Memory channel: Double

Number Of Memory Slots: 2

Number of M.2: 1

Number of PCI: 0

Number of PCIe x 1: 1

Number of PCIe x 16: 1

Number of SATA Ports: 2

Onboard Connectors & Header: 24-pin Main Power Connector,PWR_FAN Connector,4-pin +12V Power Connector,USB 3.0 Connector,USB 2.0 Connector

Onboard LAN: 1x RJ45

Origin: Mainland China

PCI - E standards: PCI-E 3.0

Package: Yes

Ports: PCI-Express X1

Processor compatibility: Intel Core

Quality Certification: ce,ROHS,FCC

RAID Supported: Yes

SATA RAID: 0

Socket Type: LGA1150

Special Features: NONE

Storage Interface Type: SATA 3,M.2 (NVMe)

Support Memory Type: DDR3

Support USB Type: USB 2.0,USB 3.0

Supports M.2 SSD: 2242,2280

Usage Scenario: Gaming,Audio & Video,Household,Office

With CPU: No

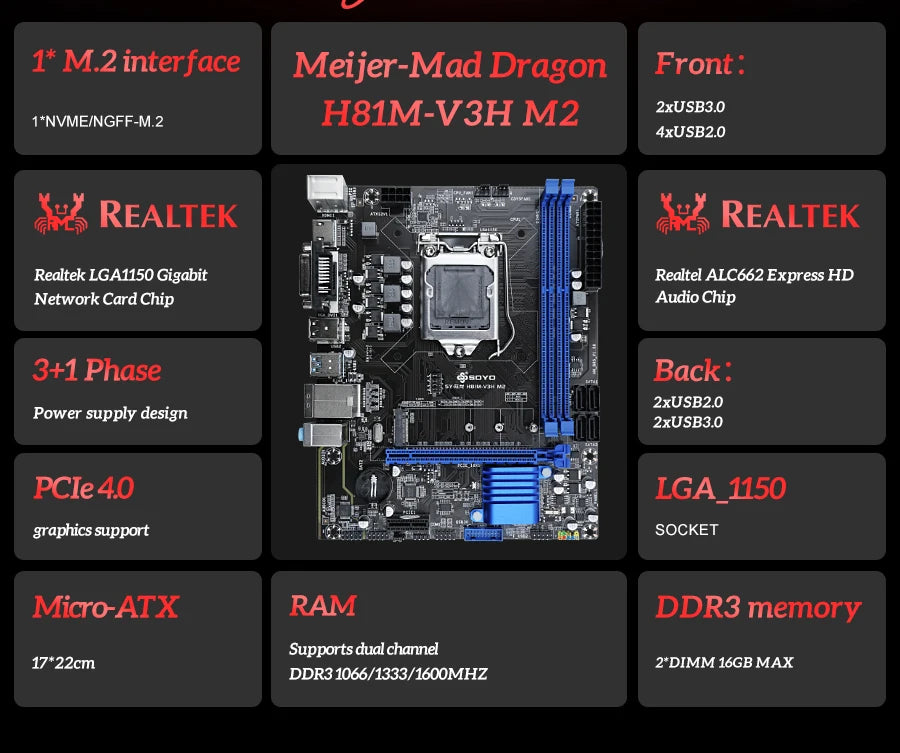

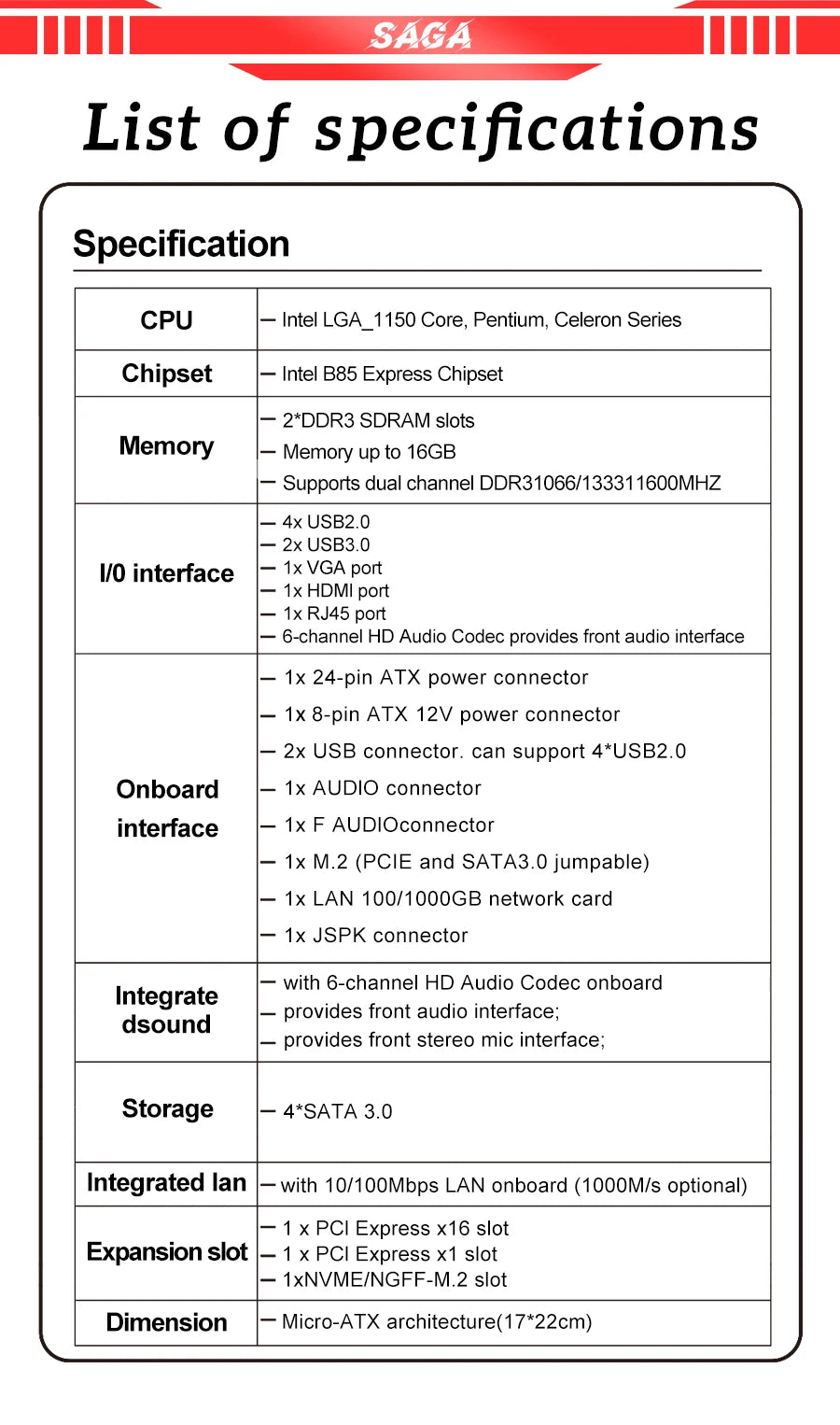

Specification

CPU

- Supports LGA1150 Socket i3/i5/i7 series CPU

Chipset

- Intel H81 Express Chipset

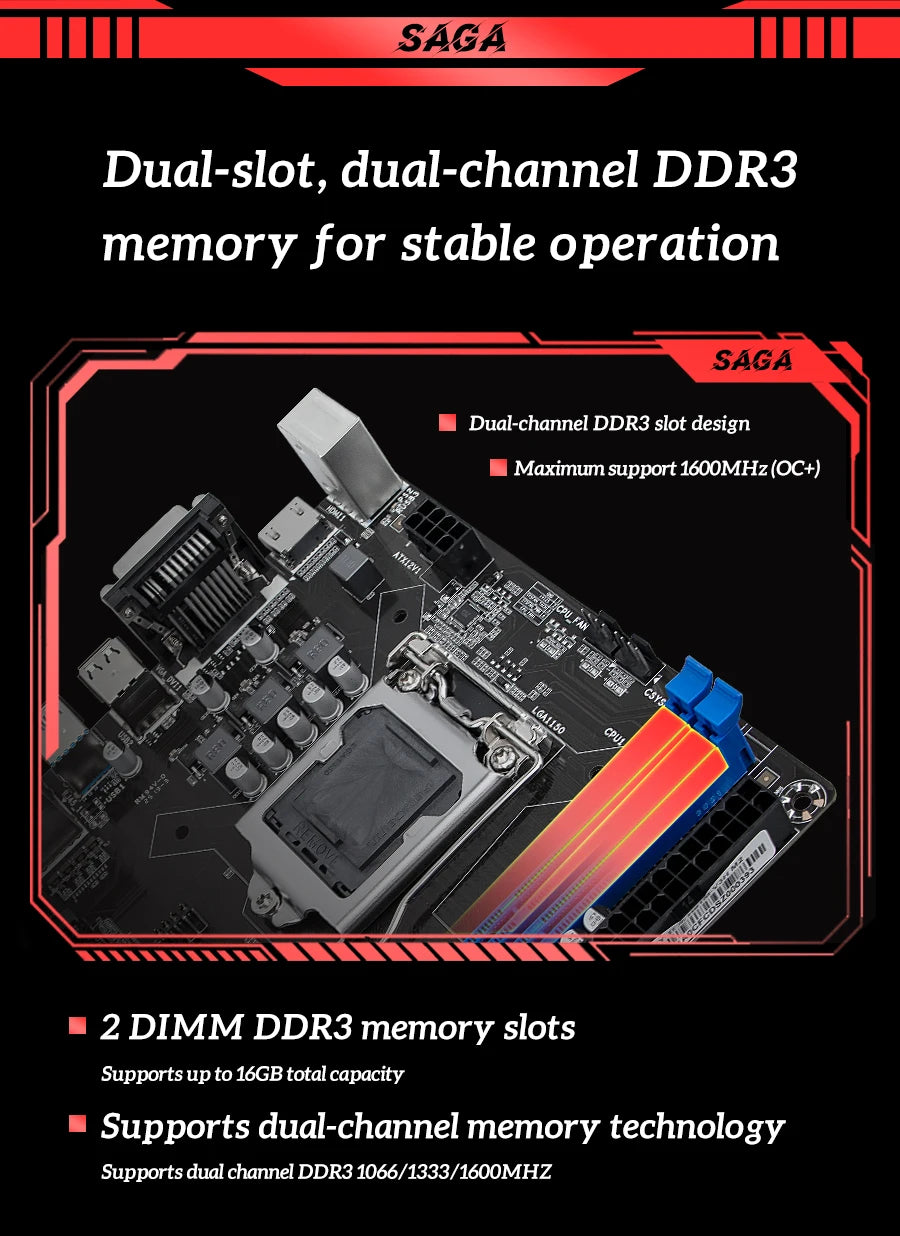

Memory

-2*240-pin DDR 3SDRAM slots

-Memory up to 16GB

-Supports dual channel DDR3 1066/1333/1600MHz

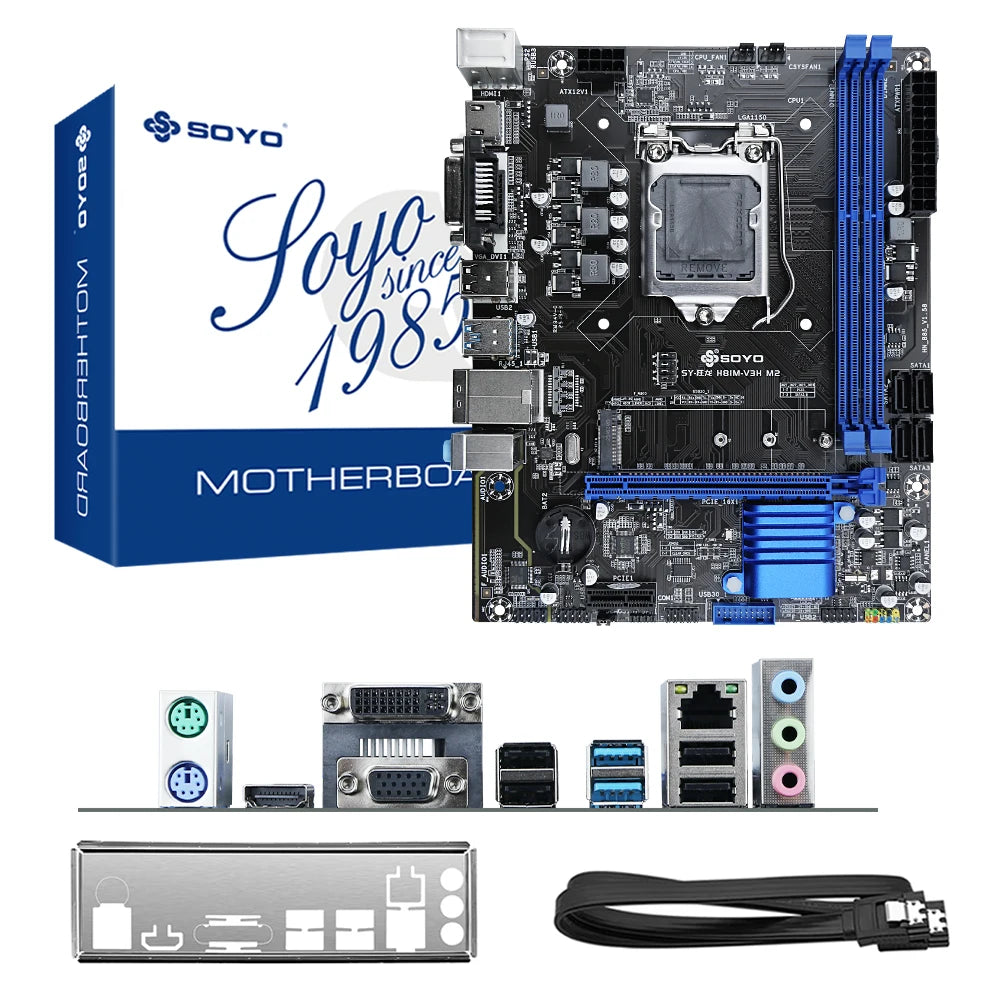

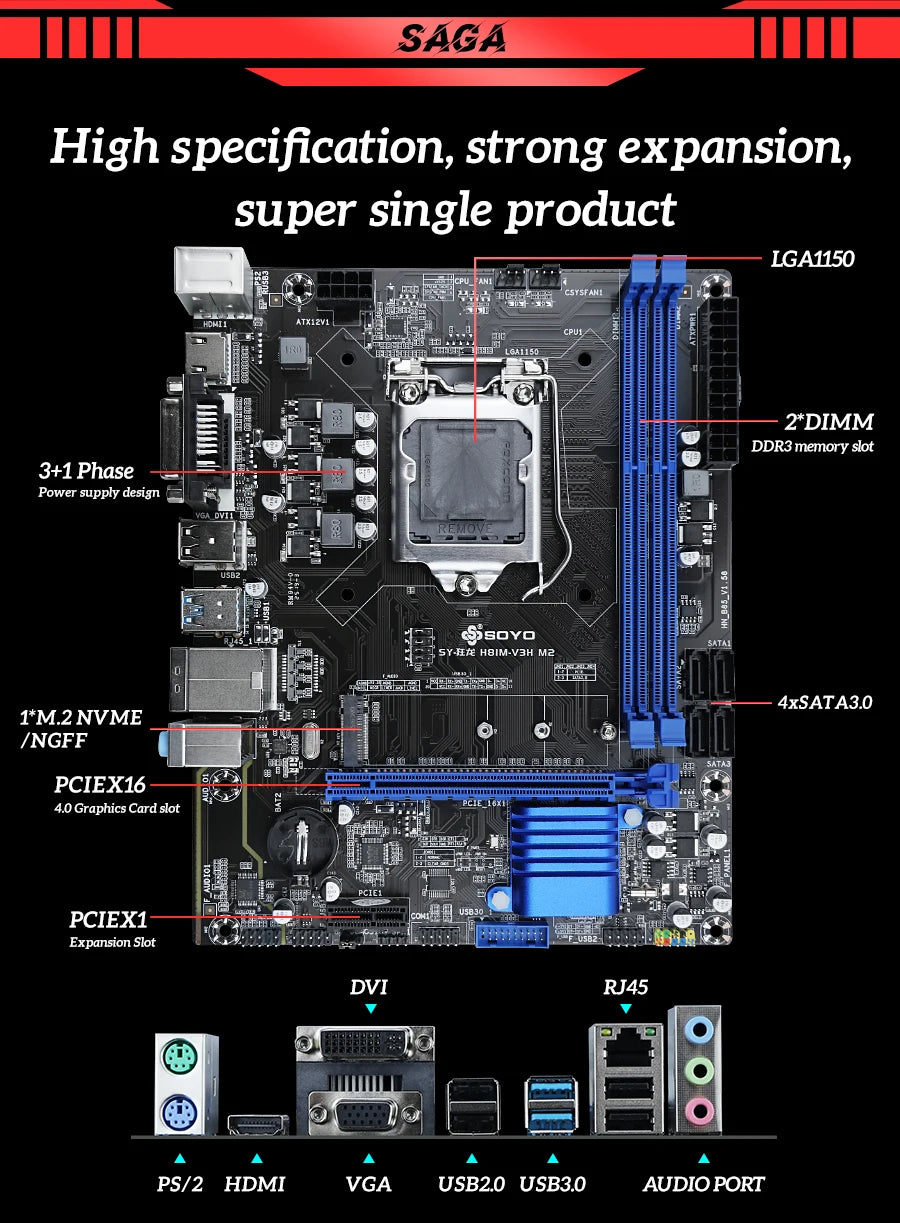

I/O interface

- 4xUSB2.0

- 2xUSB3.0

-1xVGAport

-1xHDMI port

- 1xRJ45 port

- 1x3-in-1Audio port(line In/Line Out/MIC IN)

Onboard interface

-1x24-pin ATX power connector

-1x4-pin ATX 12V power connector

-2xUSB connector.can support 4*USB2.0

-1 x F_AUDIO connector

- 1xF PANEL connector

- 1xSPEAKER connector

-1 x FAN connector

-1xLPC_DEBUG connector

Integrated sound

-with 6-channel HD Audio Codec onboard

-provides front audio interface;

provides front stereo mic interface;

Storage

-1xSATA2.0(3GB/s)ports.2xSATA3.0(6GB/s)ports

Integrated lan

- with 10/100 Mbps LAN onboard (1000M/s optional)

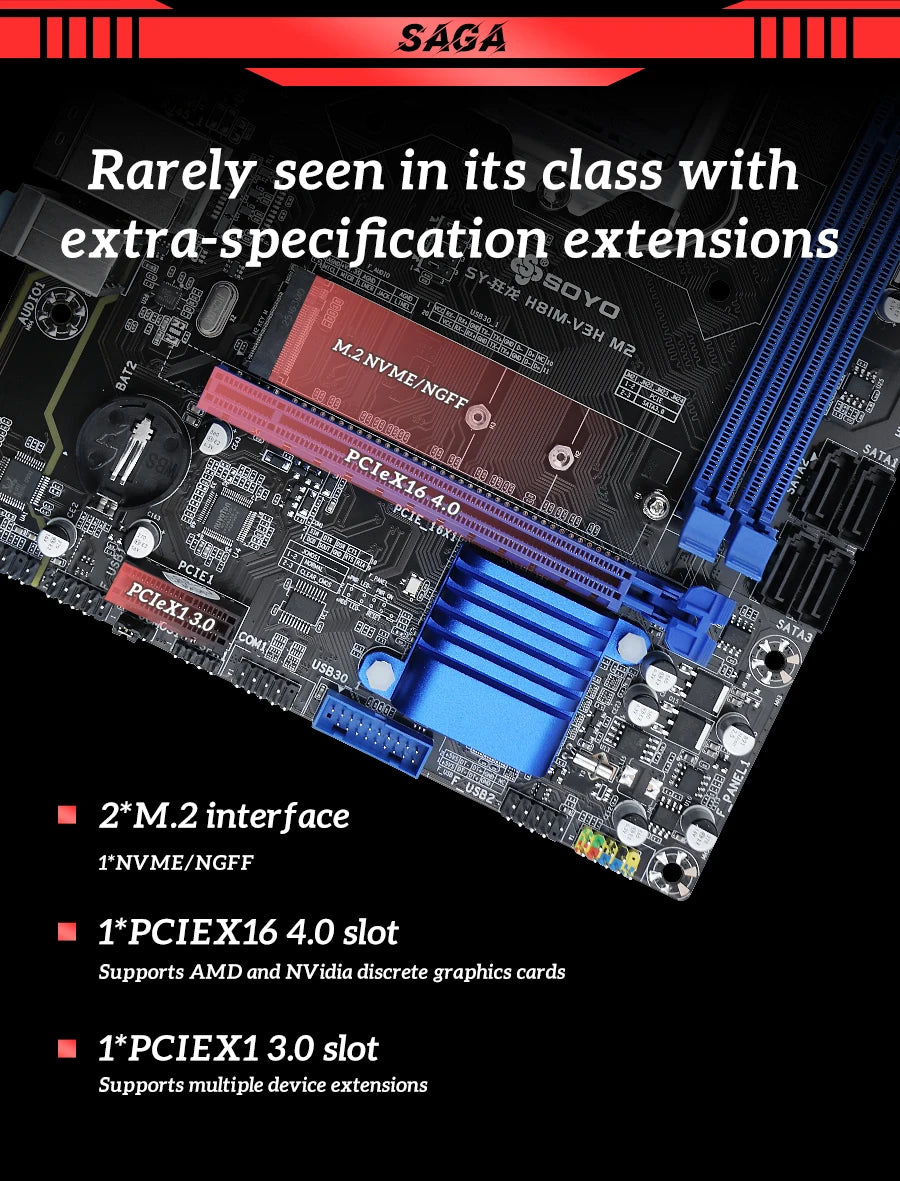

- 1x PCIExpress x16 slot

Expansion slot

- 1xPCI Express x1 slot

- 1x NVME/NGFF-M.2 slot

Dimension

- Micro-ATX architecture(17*22cm)

Note:

(1) This planform needs powerful power supply. Please make sure your power supply can enough to supports this planform.(at least 500w brand power supply).

(2) The battery in motherboard photos is not included and will be removed before shipping, as this battery is forbidden according to the logistics requirements.

(3)For tax issues, please make sure that you can solve the customs clearance problem yourself, if you can't, we don't recommend that you buy goods in our store. We are not responsible for customs duties. Thank you for your understanding.

(4) For the problem of inaccurate temperature control of the test motherboard: the motherboard does not have a temperature control chip, and the software test is a virtual temperature (may be 110°-120°)This is normal. The actual temperature can be tested with a body thermometer.

# # #Because there are too many computer accessories in the market, it is likely that there are some niche brands, poor quality or ES/QS versions of CPU, RAM, M.2 SSD or other accessories may appear incompatible with the motherboard. You can confirm with our customer service before purchasing. If there is no confirmation before purchase, then incompatibility will occur when you receive the motherboard and we will not accept refunds. When you purchase this link, we assume that you have read and understood the situation ation . Please note please do not buy!
