SPECIFICATIONS

Brand Name: ALCTRON

Built-in Battery: No

Certification: CE

Communication: WireLess

Diaphragm: S-Mall

High-concerned chemical: None

Origin: Mainland China

Package: Yes

Set Type: Transmitter Sets

Style: EX-200/GT (Guitar)

Transducer: Condenser Microphone

Use: Wireless Instrument for Guitar

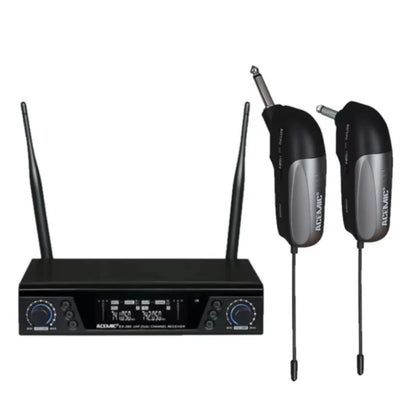

ACEMIC EX-200/GT-1 EX-200/GT-2 UHF Dual Channels Wireless Guitar Microphone 2(two) channels IR sync Super anti-interference

Electric Guitar, Bass, Piano, Voilin, Drums, Cello, Clarinet, Accordion

FEATURES

*UHF 660-690 MHz frequency range( region dependant)

*Super anti-interference capability ensures 10 systems can use together without interference

*High-fidelity sound quality, no loss while wireless transmission compare to the cable.

*Pre-set 200 (100*2) frequency seletable, IR synchronization.

*LCD display shows the group, channel, frequency and RF, AF levels.

*EIA standard 1/2 rack mountable metal chassis.

*No more the bodypack transmitter, plug-in transmitter design.

*Transmitter power supplied by one AA 1.5V battery, battery life more than 12hours

*Special designed for electric guitar, bass, keyborad, drums violin and all 6.35mm jack electric  instrument applications



SPECIFICATION

Comprehensive Performance

Frequency Range:  660-690  MHz

Modulation Mode: FM

Dynamic Range: >100dB

Frequency Response: 40Hz-17KHz±3dB

Total Harmonic Distortion: <0.5% at 1KHz

Signal/Noise Ratio: ≥108dB



Receiver

Frequency Range:  660-690  MHz

Receive Sensitivity: -110dBm (sinad ≥30dB)

Signal/Noise Ratio: >105dB

Power Supply: DC12V-18V / 500mA

Audio Output: 1*XLR socket, 1*6.35mm jack socket



Transmitter

Frequency Range:  660-690  MHz

RF Power: 10mW

Frequency Deviation: ±48KHz

Antenna: 1/4 wave Length wire type

Battery Voltage: 1.5V (1x1.5V AA Battery)

Power Consumption: 10 hours, battery-dependent
