SPECIFICATIONS

Brand Name: Phenyx Pro

Built-in Battery: No

Certification: CE,FCC,RoHS,weee

Communication: WireLess

Diaphragm: S-Mall

High-concerned chemical: None

Origin: Mainland China

Package: Yes

Polar Patterns: Cardioid

Set Type: Transmitter Sets

Style: Gooseneck Microphone

Transducer: Dynamic Microphone

Use: Live

Introduction

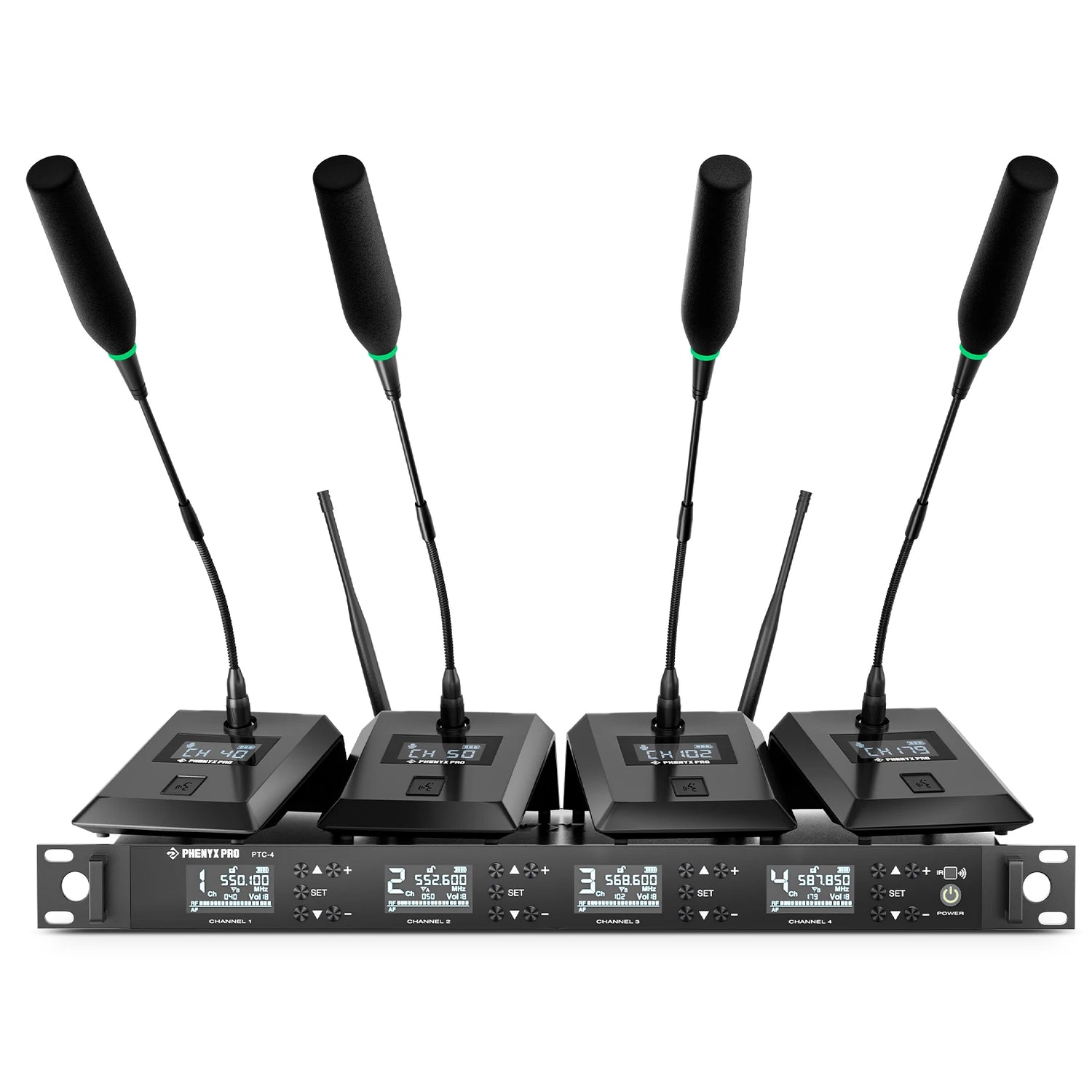

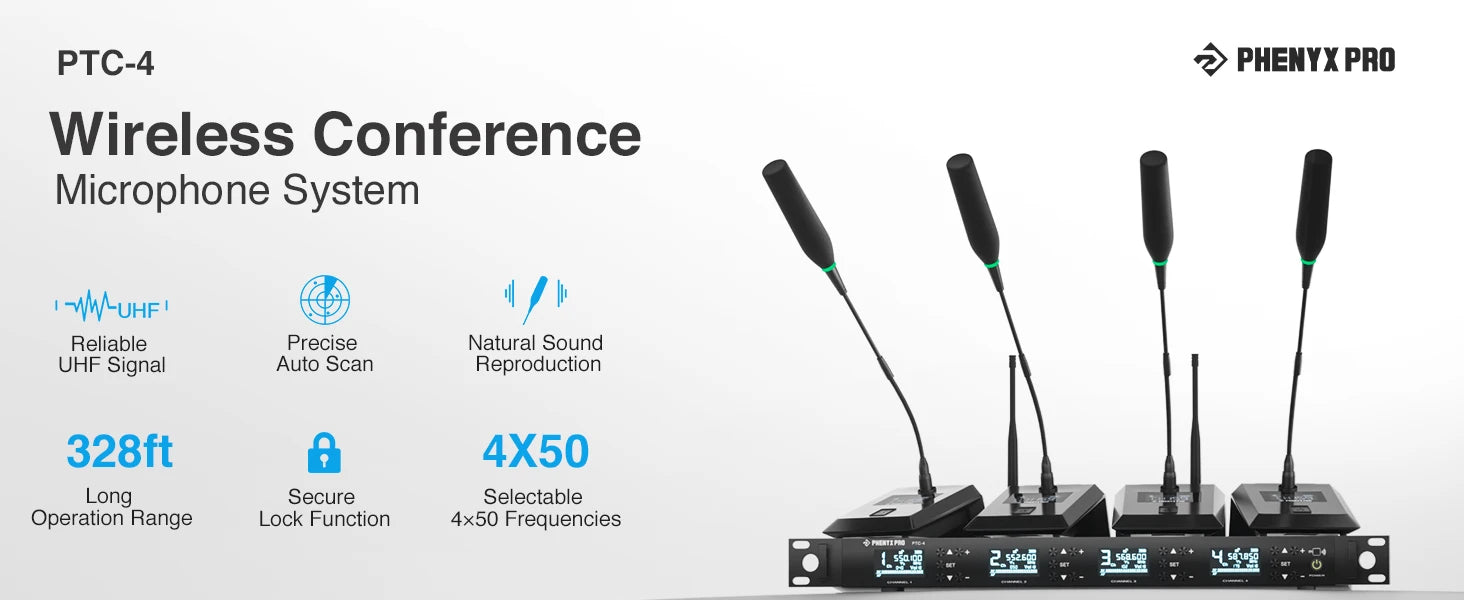

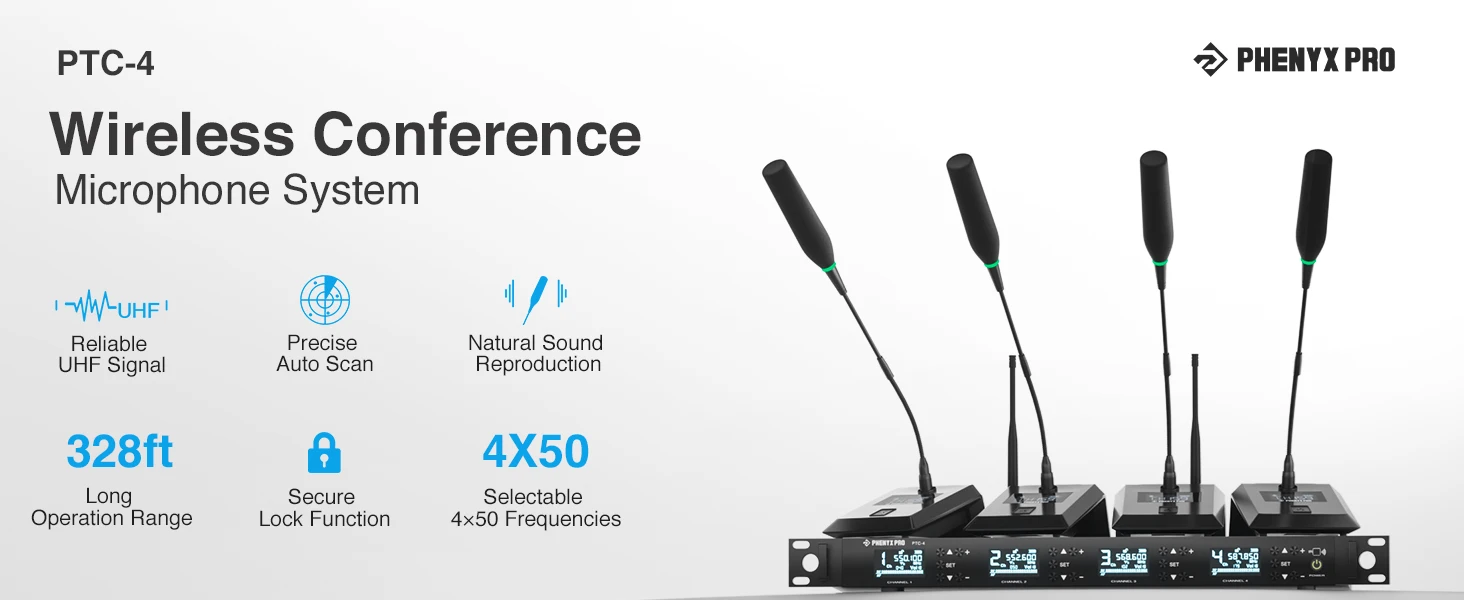

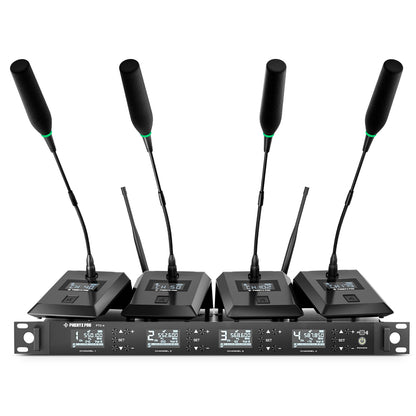

The Phenyx Pro PTC-4 UHF Wireless Conference Microphone System is a high-performance solution designed for professional settings such as corporate meetings, churches, classrooms, lecture halls, and public speaking. With 4x50 tunable frequencies and an Auto Scan function, the system automatically detects and selects the optimal frequency for smooth, interference-free operation, delivering reliable performance up to 328 ft/100 m. It supports the simultaneous operation of up to 3 units, accommodating up to 12 microphones without frequency conflicts. Other key features include effortless IR synchronization, a secure lock function, custom EQ tuning for natural voice, and foam covers to reduce unwanted noise. With a replaceable battery and 8–10 hours of battery life, you can easily swap batteries to ensure uninterrupted use for your next importa

Features
Reliable Transmission
Operates with 4×50 selectable frequencies, delivering stable, low-latency audio and up to 328 ft (100 m) of reliable transmission.
Quick IR Sync
Uses hassle-free IR synchronization to pair the receiver and conference microphones quickly, minimizing dropouts and maximizing feedback rejection.

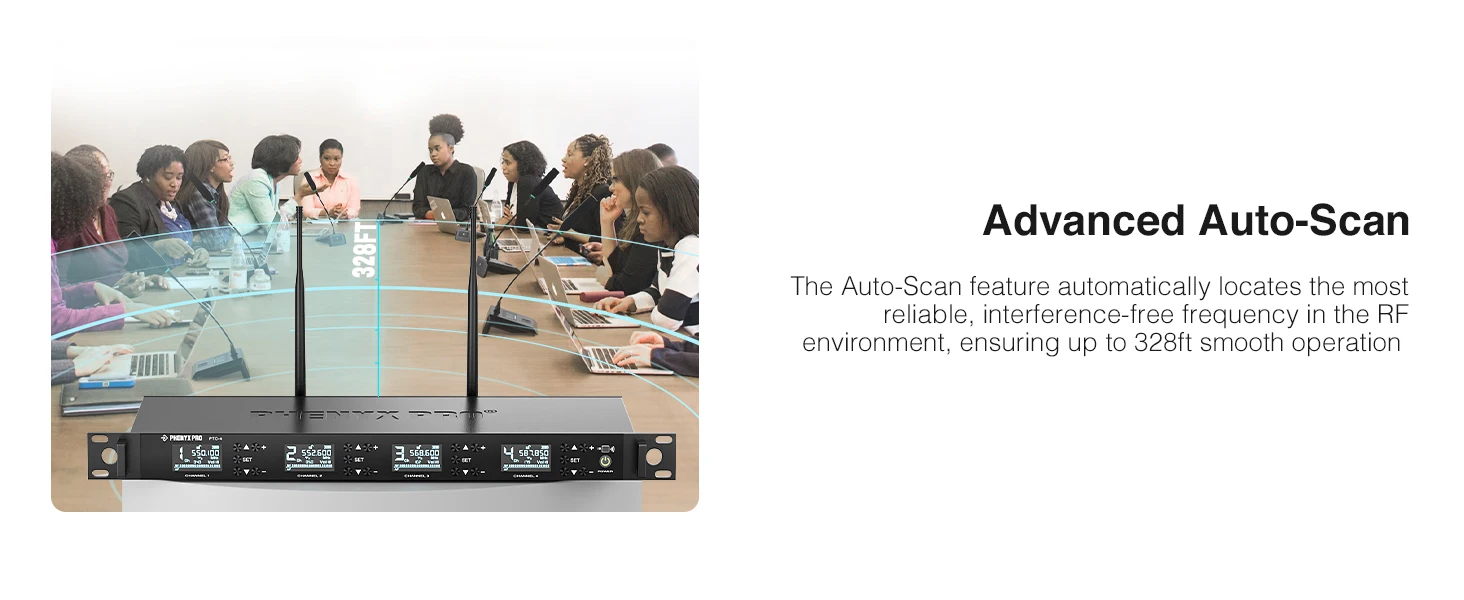

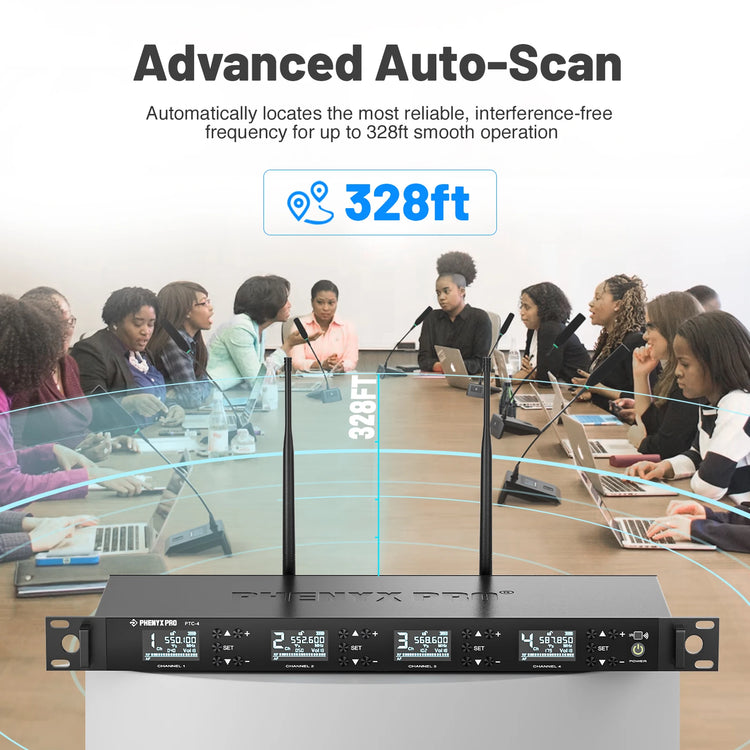

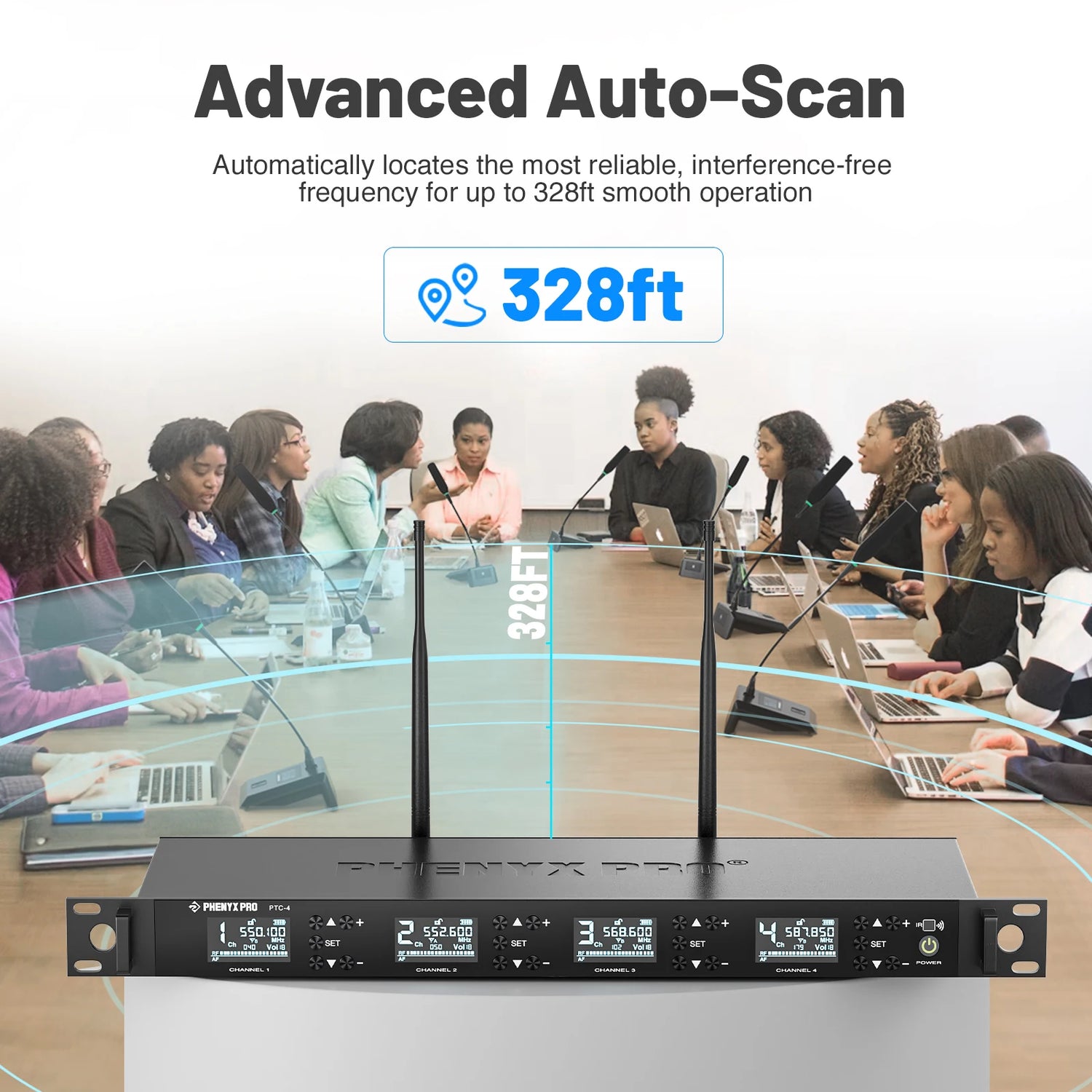

Efficient Autoscan
The auto-scan feature scans the RF environment with precision, quickly identifying the optimal frequency for smooth, interference-free performance.

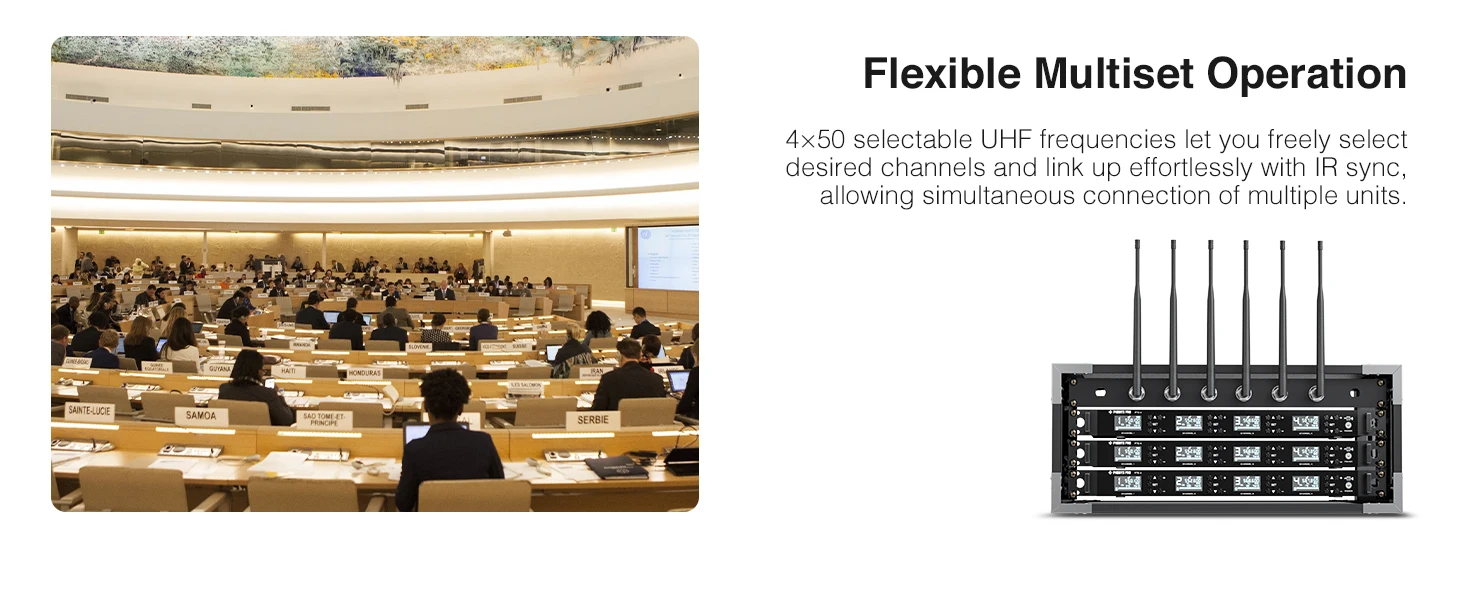

Multi-set Operation
Up to 3 systems can operate concurrently, accommodating 12 conference microphones without frequency conflicts.

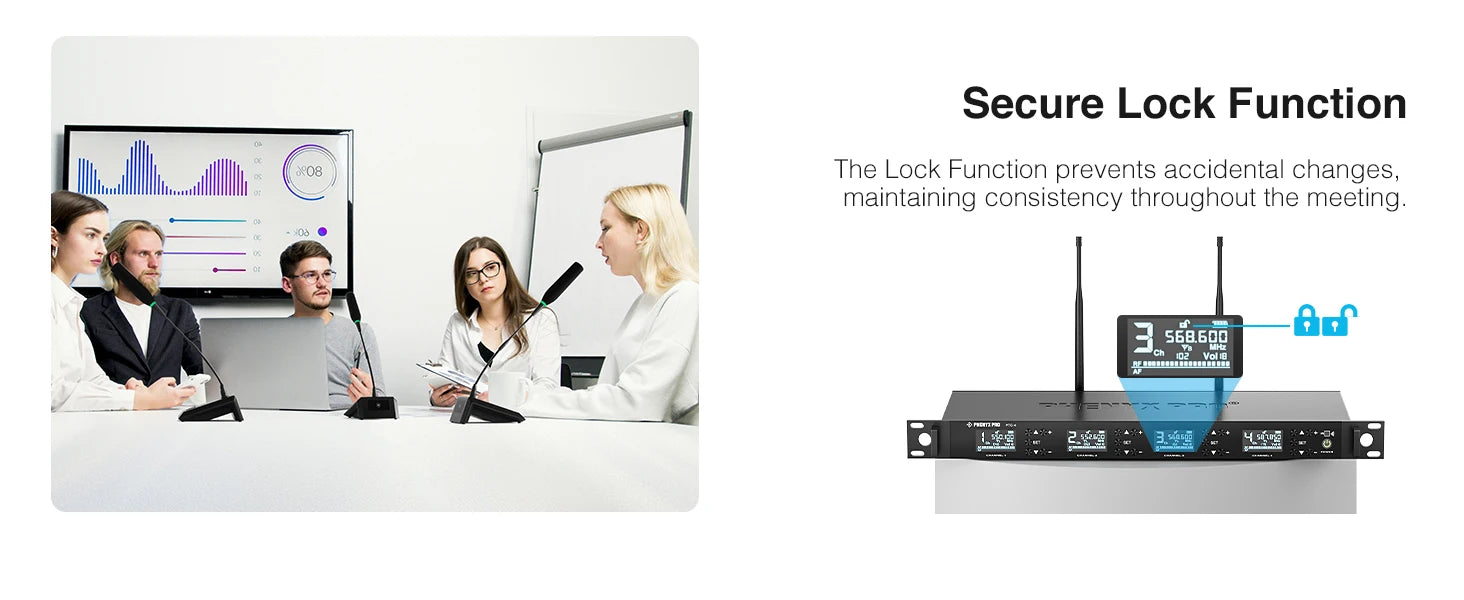

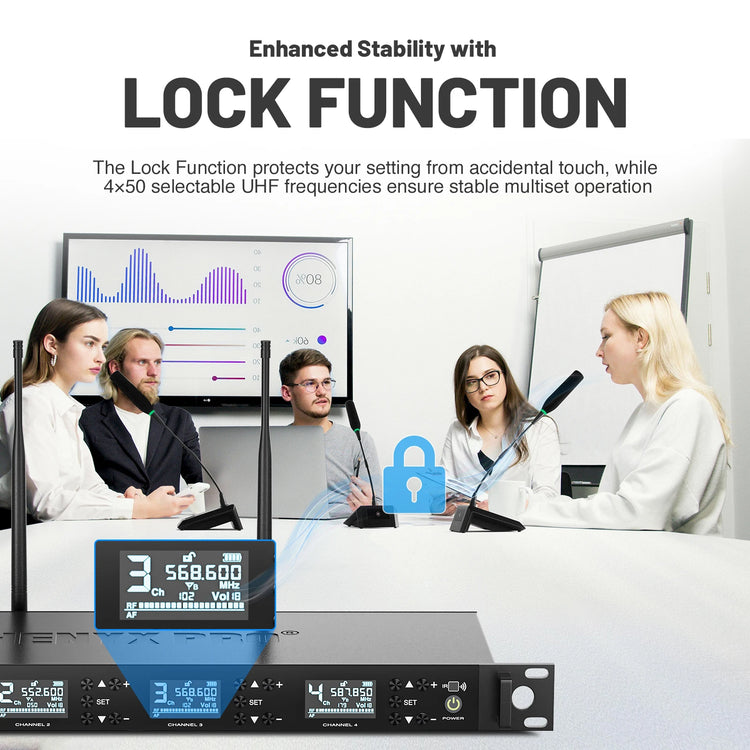

Secure Lock Function
The secure lock function prevents accidental changes to settings, ensuring stable and uninterrupted operation throughout use.

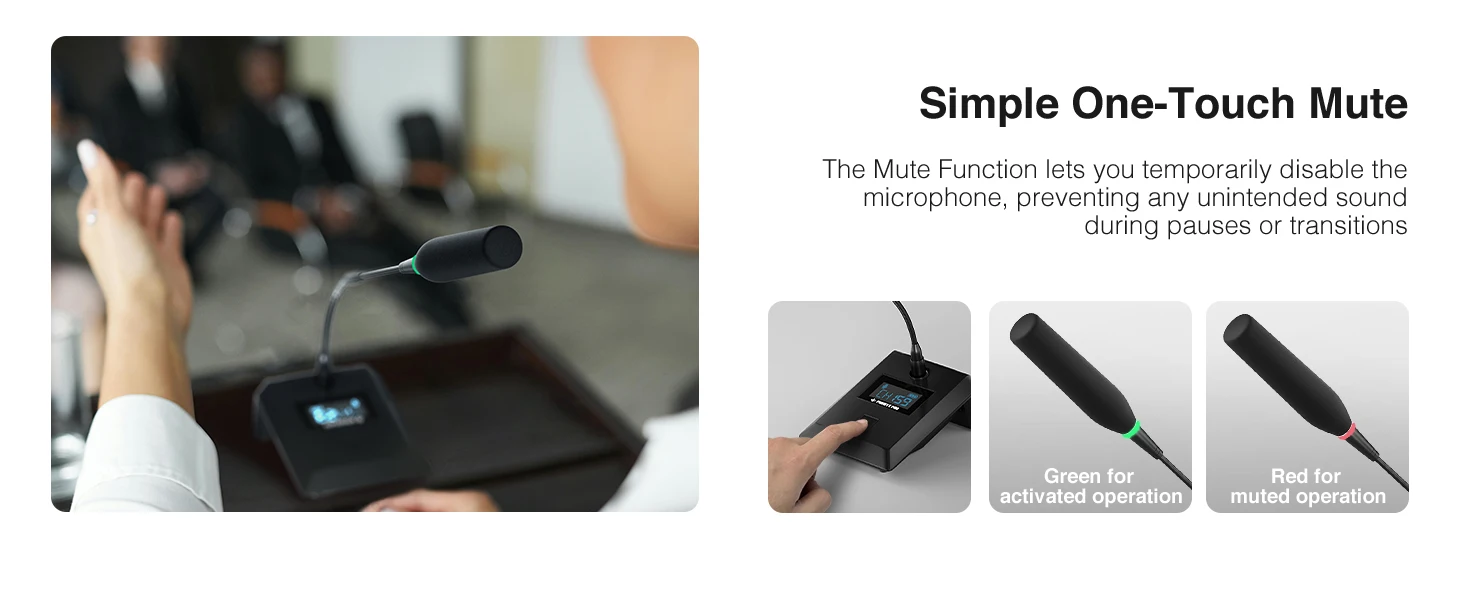

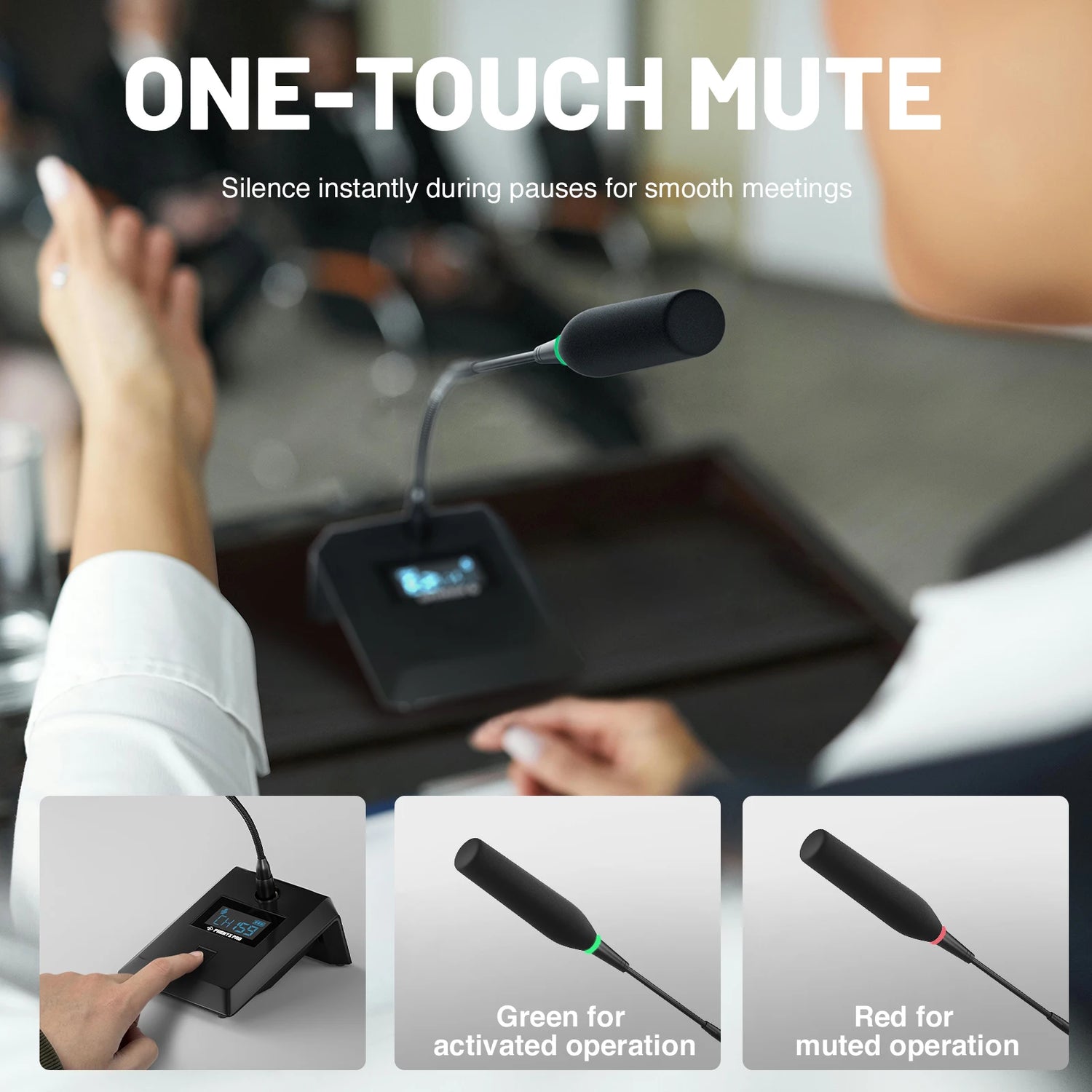

Easy Mute Function
The mute function on the transmitter allows users to temporarily disable the microphone, avoiding any unintended sound during pauses or transitions.
Custom EQ Tuning
Custom EQ tuning optimizes sound for meeting environments, enhancing voice clarity and reducing listener fatigue during extended sessions.
Noise-Reducing Foam Cover
Foam covers reduce wind and plosive noises, ensuring clear audio in outdoor or dynamic settings.
Long Battery Life
Provides 8-10 hours of operation with two replaceable AA batteries, allowing you to easily swap batteries during extended events, so you never have to worry about running out of
power.
Durable Metal Design
Built with a premium metal design, the UHF receiver offers durability and an enhanced user experience.

Specification
Overall System
Frequency Range: UHF 540 MHz - 590 MHz
Modulation Mode: Wideband FM
Adjustable Range: 50 MHz
Number of Channels: 200
Channel Spacing: 250 KHz
Frequency Stability: ±0.005%
Dynamic Range: >105 dB
Maximum Frequency Deviation: <45 KHz
Audio Response: 40 Hz - 18 KHz (±3 dB)
Overall Signal-to-Noise Ratio: >105 dB
Total Harmonic Distortion: <0.26%
Operating Temperature: -25°C to +40°C

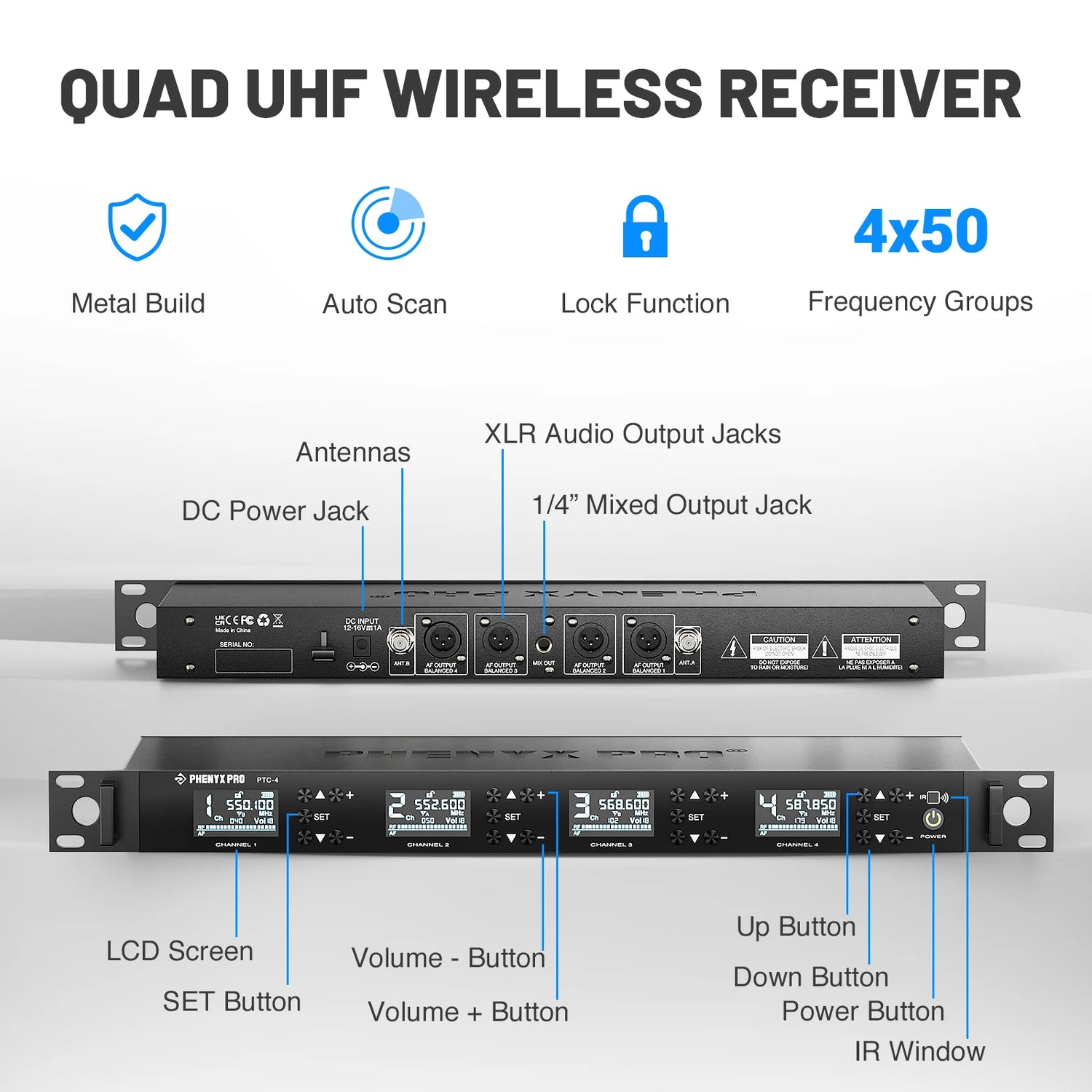

Receiver
Reception Mode: Double Conversion Superheterodyne
Input Power: 5 W
Intermediate Frequency: First IF: 110 MHz, Second IF: 10.7 MHz
Wireless Interface: BNC(50 Ω)
Sensitivity: 12 dB(µV) (80 dBS/N)
Sensitivity Adjustment Range: +10 dBµV -32 dBµV
Spurious Suppression: >95 dB
